A fan array retrofit for a healthcare AHU in New York City

While most of the city was off this weekend, the GRR team was on site, completing another critical HVAC retrofit in NYC. More on hospital EC fan array retrofits >

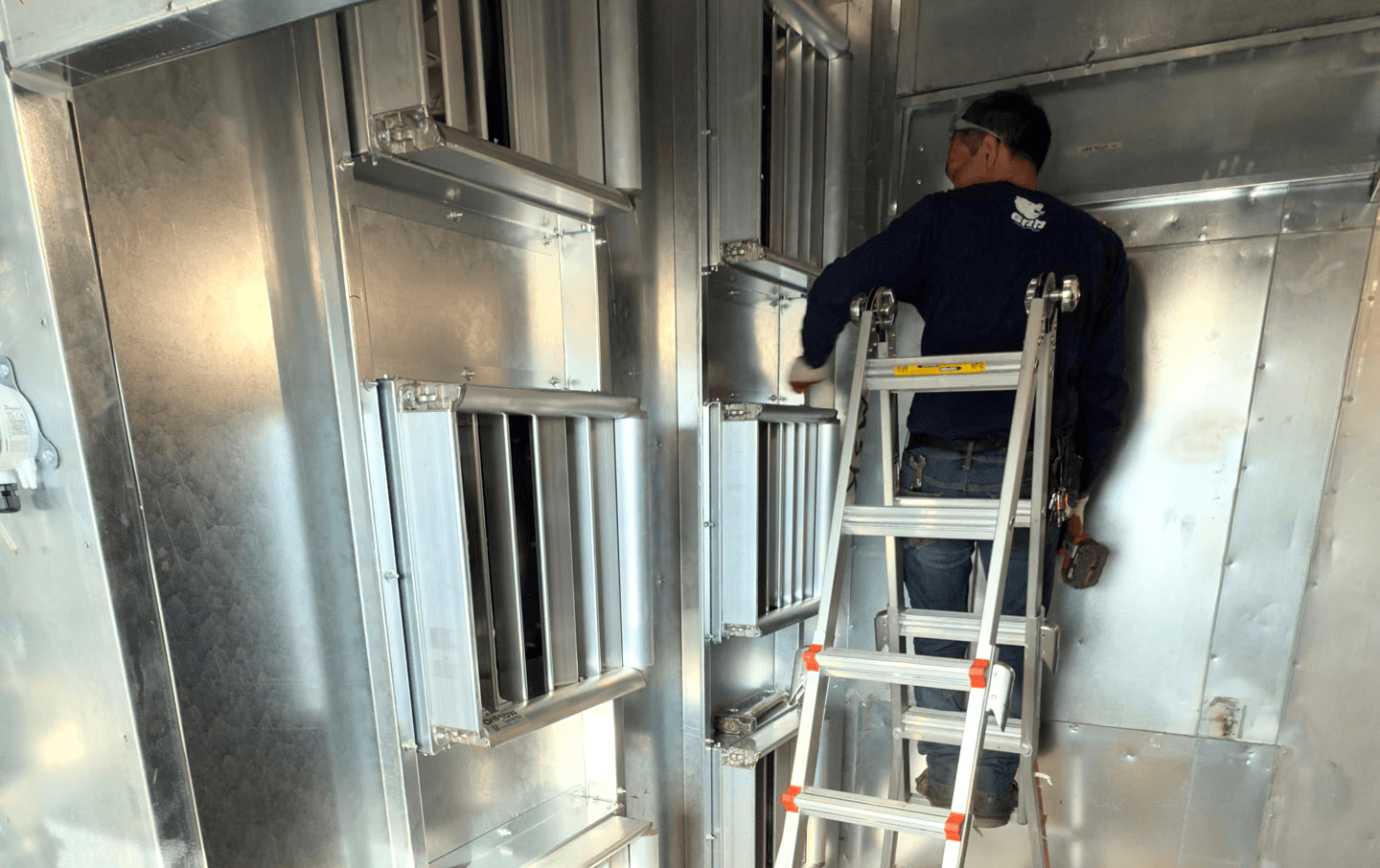

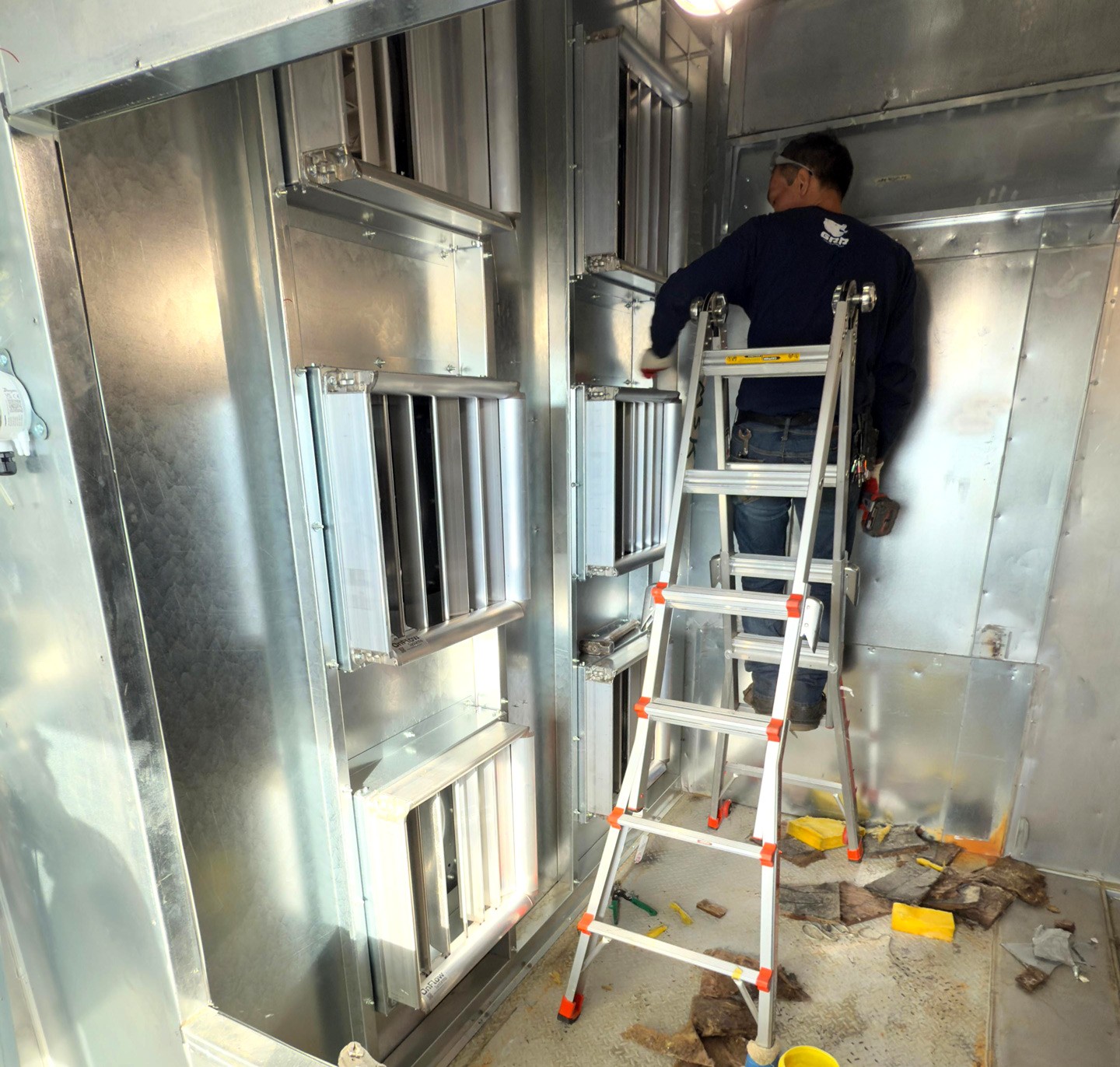

On October 18th, our field crew completed a fan array retrofit for a healthcare air-handling unit in New York City, delivering full operational reliability within a 10-hour live-facility window, with zero disruption to hospital operations.

𝗦𝘆𝘀𝘁𝗲𝗺 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀:
🔹 Total Airflow Capacity: ≈ 22 000 CFM @ ~6″ static pressure

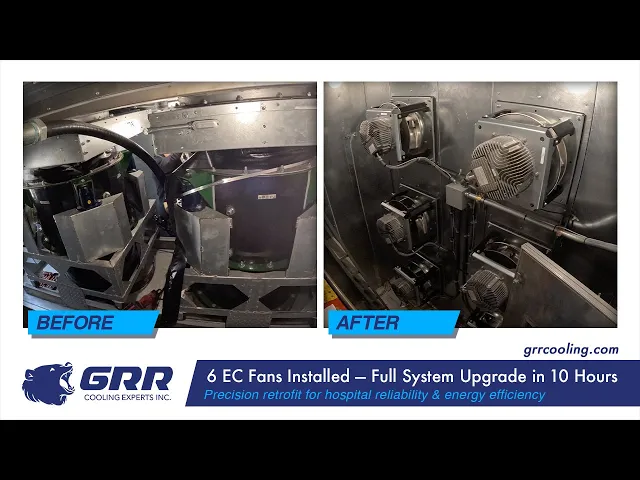

🔹 Configuration: Six (6) direct-drive EC blowers + one extra-capacity module for redundancy
🔹 Controls: Advanced electrical panel with six overloads and Carel controller
🔹 Components: Backflow dampers and BFD sleeves for safe, balanced operation
🔹 Commissioning: Factory-balanced fan modules for precise airflow and vibration control
