Overview
GRR Cooling Experts completed a return fan retrofit for a healthcare facility in Danbury, Connecticut, replacing an aging fan assembly with a new double-wall direct-drive EC return fan system.
The new fan package uses two direct-drive EC blowers and is rated up to 12,000 CFM at 2.0 in. S.P. The retrofit also included new intake and discharge duct transitions, a dedicated control panel with overload protection, fan wiring, startup, and operational verification.
The new assembly was engineered around the existing mechanical-room layout and duct connections, allowing the return fan system to be modernized without rebuilding the surrounding air distribution system.

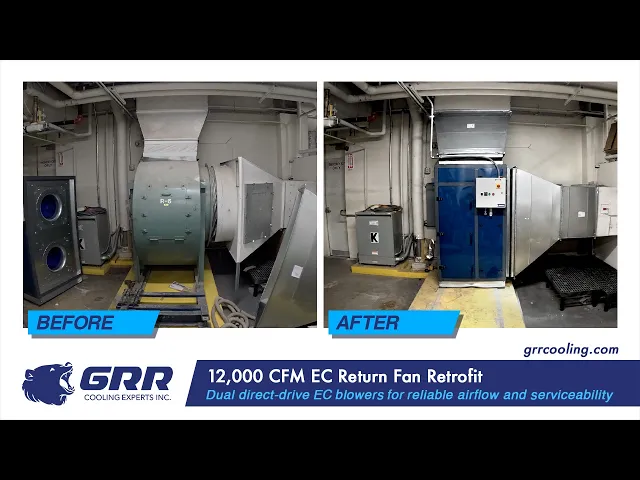

Watch the Return Fan Retrofit
See the removal, installation, duct adaptation, and completed direct-drive EC return fan retrofit in the project video.
Watch the project video on YouTube
The Challenge
Existing HVAC systems in healthcare facilities rarely allow a simple equipment swap.
The return fan had to be removed from an established mechanical-room layout while preserving the existing intake and discharge duct connections. The replacement system also had to fit the available footprint and integrate with existing field conditions.
An existing balancing report documented the original system operating at 5,625 CFM at 1.69 in. S.P. The replacement fan package was selected and rated for up to 12,000 CFM at 2.0 in. S.P., providing additional operating capability without relying on the geometry of the legacy fan assembly.
The challenge was not simply replacing the fan. It was integrating a modern direct-drive EC system into an existing air system with minimal changes to the surrounding infrastructure.
The Solution
GRR Cooling Experts removed the existing return fan and installed a new double-wall return fan section designed for the existing application.
The new system incorporated two direct-drive EC blowers using ZIEHL-ABEGG fan technology, providing a compact direct-drive configuration without the belts, shafts, and traditional drive components associated with the previous fan arrangement.
The project scope included:
🔹 Removal of the existing return fan assembly
🔹 Installation of a new double-wall return fan section
🔹 Two direct-drive EC blowers using ZIEHL-ABEGG technology
🔹 Fabrication and installation of new intake and discharge duct transitions
🔹 Dedicated control panel with overload protection
🔹 Fan wiring from the new panel to the return fan
🔹 Startup and operational verification
The intake and discharge transitions were fabricated to connect the new fan section to the existing ductwork, allowing the retrofit to work within the existing mechanical-room configuration rather than forcing major changes to the surrounding system.
System Specifications
🔹 Application: Healthcare return-air system
🔹 Fan type: Double-wall direct-drive EC return fan
🔹 Rated airflow: Up to 12,000 CFM
🔹 Static pressure: 2.0 in. S.P.
🔹 Fan configuration: Two direct-drive EC blowers
🔹 Fan technology: ZIEHL-ABEGG EC technology
🔹 Ductwork: New intake and discharge transitions integrated with existing ductwork
🔹 Panel: Dedicated control panel with overload protection
🔹 Existing balancing report: 5,625 CFM at 1.69 in. S.P.
🔹 Location: Danbury, Connecticut
Outcome
The completed retrofit replaced the aging return fan assembly with a modern direct-drive EC system engineered around the existing mechanical-room and ductwork conditions.
The new configuration provides a more serviceable fan arrangement, dedicated control and protection, and a fan package rated for the required airflow and static-pressure range.
By adapting the new equipment to the existing system rather than rebuilding the surrounding duct infrastructure, GRR delivered a practical retrofit path for an existing healthcare HVAC application.
See the complete retrofit process in the project video ›
